Grinder Jaw Crushers are used to process medium-hard, hard, brittle and tough sample fast and gently. The Jaw plates have 6 kinds of material to choose.This series of products with superior technical and safety performance, so it is your ideal choice in the laboratory and enterprise production for the sample preparation.
Work Principle
The sample enters the grinding chamber via the anti-splashing hopper. The crushing is proceeded inside the wedge-shaped shaft space between two jaw plates. one jaw plate is fixed, while the other jaw plate is driven by a bent axle to perform oval movement with the continuous rotation of the motor. The sample is crushed due to extrusion caused by constant movements of the jaw plate and moves downward under the effect of gravity. In case the grain size of the sample is less than the lower opening gap of jaw plates, it will fall to the drawer receiver at the lower part of the machine.
Application
- Mining and metallurgical industries: niobium and titanium alloy, vanadium iron, chrome vanadium, tungsten carbide, ore, coal, slag, coke ;
- Chemical products:wide variety of chemical industry raw materials;
- Geological and mineralogical:rock, granite, basalt, barite, silicate;
- Ceramic industry:talc, sintered clay, sintering ceramic, electric ceramic;
- Building materialsbauxite, slag brick, quartz, cement.
Product Advantages
- Zero point adjustment to compensate the wear
- High-safety design
- The feed hopper can avoid scratching of operators touching the grinding chamber, in addition, the hopper baffle can prevent the rebound of samples from injuring persons.
- A safety switch is equipped at the upper of the feed hopper. The device cannot be started when the hopper is opened so as to guarantee the safety of operators.
- The motor and the controller also have overload protection devices; motor overload will occur when the load is too large (excessive sample loading or oversized samples), at this moment, such overload protection devices will automatically shut off the power supply for the device to protect the motor and the device.
- Comfortable operation and easy cleaning
Technical Specifications
| Feed size | <90mm |
| Final fineness | <2mm |
| Speed | 690rpm |
| Collector capacity | 5L |
| Jaw plate width | 99mm |
| Gap setting | 0~30mm |
| Zero point adjustment | Yes |
| Rated power | 2.2KW |
| Power supply | 380V, 50Hz |
| Instrument size(W*D*H) | 440x900x1090mm |
| Package size(W*D*H) | 800×1165×1330mm |
| Net Weight | 300Kg |
Jaw Crusher JC5
Work Principle
The sample enters the grinding chamber via the anti-splashing hopper. The crushing is proceeded inside the wedge-shaped shaft space between two jaw plates. one jaw plate is fixed, while the other jaw plate is driven by a bent axle to perform oval movement with the continuous rotation of the motor. The sample is crushed due to extrusion caused by constant movements of the jaw plate and moves downward under the effect of gravity. In case the grain size of the sample is less than the lower opening gap of jaw plates, it will fall to the drawer receiver at the lower part of the machine.
Application
- Mining and metallurgical industries: niobium and titanium alloy, vanadium iron, chrome vanadium, tungsten carbide, ore, coal, slag, coke ;
- Chemical products:wide variety of chemical industry raw materials;
- Geological and mineralogical:rock, granite, basalt, barite, silicate;
- Ceramic industry:talc, sintered clay, sintering ceramic, electric ceramic;
- Building materialsbauxite, slag brick, quartz, cement.
Product Advantages
- High throughput, high degree of size reduction
- Excellent performance and high final fineness (d90 <0.5 mm)
- Zero point adjustment to compensate the wear
- Breaking jaws made of 6 different materials
- Anti- splash design hopper
- Easy-to-clean crushing chamber
- Set jaw plate gap by rotating handle
Technical Specifications
| Feed size | <40mm |
| Final fineness | <0.5mm |
| Speed | 500-1000rpm |
| Collector capacity | 3L |
| Jaw plate width | 59.5mm |
| Gap setting | 0~11mm |
| Zero point adjustment | Yes |
| Rated power | 1.1KW |
| Power supply | 220V /50Hz |
| Instrument size(W*D*H) | 420×460×560mm |
| Package size(W*D*H) | 785×900×780mm |
| Weight | 79Kg |

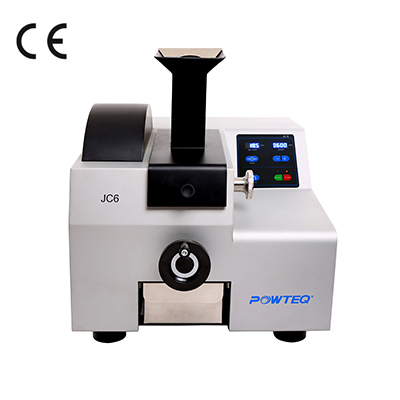

Jaw Crusher JC6
